Stereographic maps¶

This notebook showcases an accessor class for stereographic map plots produced with {mod}cartopy and {mod}matplotlib.

An accessor can be registered with the {deco}~my_code_base.plot.maps.register_geoaxes_accessor decorator in {mod}my_code_base.plot.maps. The accessor can be given an arbitrary name and should inherit from the {class}my_code_base.plot.maps.GeoAxesAccessor ABC meta class, which provides some basic geographic-map related methods.

For example, the “polar” accessor is registered as follows:

@register_geoaxes_accessor("polar")
class StereographicAxisAccessor(GeoAxesAccessor):
    """An accessor to handle features and finishing of stereographic plots produced with `cartopy`.
    Can handle both {class}`ccrs.NorthPolarStereo` and {class}`ccrs.SouthPolarStereo` projections."""
    def __init__(self, ax):
        super().__init__(ax)

        ...

This notebook shall demonstrate the usage of such an accessor.

{tip} This accessor works both for {class}`~cartopy.crs.NorthPolarStereo` and {class}`~cartopy.crs.SouthPolarStereo` projections.

First, let’s load some packages. The {obj}polar <my_code_base.plot.maps.StereographicAxisAccessor> accessor is part of {mod}my_code_base.plot.maps.

[1]:

import matplotlib.pyplot as plt
import cartopy.crs as ccrs
import my_code_base.plot.maps

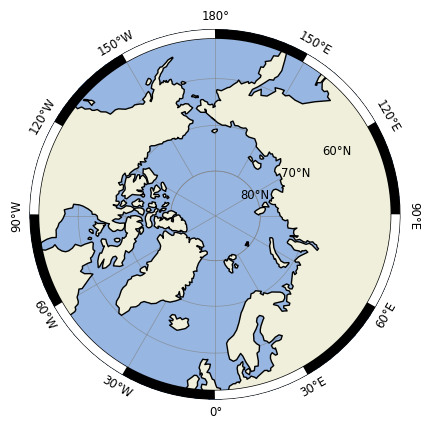

Features can be added, for example, with the method {meth}~my_code_base.plot.maps.StereographicAxisAccessor.add_features, which adds the most common features to the axis, including a ruler around the domain and rotated longitude labels.

[6]:

fig = plt.figure()
ax = plt.subplot(projection=ccrs.NorthPolarStereo())
ax.polar.add_features(ruler_kwargs={'segment_length':30})

[11]:

from myst_nb import glue
glue("polar_plot_features", fig, display=False)

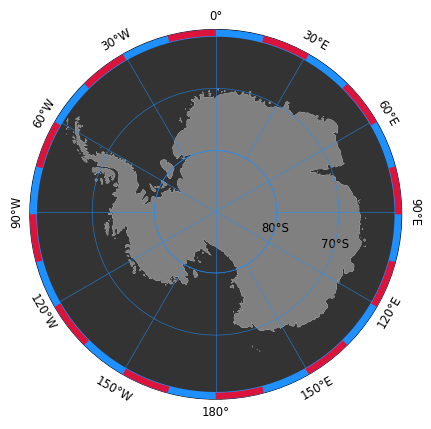

Alternatively, the different features can be added individually:

[5]:

ax = plt.subplot(projection=ccrs.SouthPolarStereo())

ax.polar.set_extent([-180,180,-90,-60])
ax.polar.add_ocean(fc='.2')
ax.polar.add_land(fc='.5')
ax.polar.make_circular()
ax.polar.add_gridlines(zorder=100, color='dodgerblue')
ax.polar.rotate_lon_labels()
ax.polar.rotate_lat_labels(target_lon=105)
ax.polar.add_ruler(segment_length=15, primary_color='dodgerblue', secondary_color='crimson')

{seealso} More details about the individual arguments for each method can be found in the source code of {class}`my_code_base.plot.maps.StereographicAxisAccessor`.
